Developed Advanced Instrument Cluster for Leading EV Bike Company
Client: A Leading manufacturer of Electric vehicles (EVs)
Industry: Electric Mobility / Automotive Technology
Challenge: Creating a modern, user-friendly instrument cluster with seamless connectivity to enhance rider experience and market competitiveness.

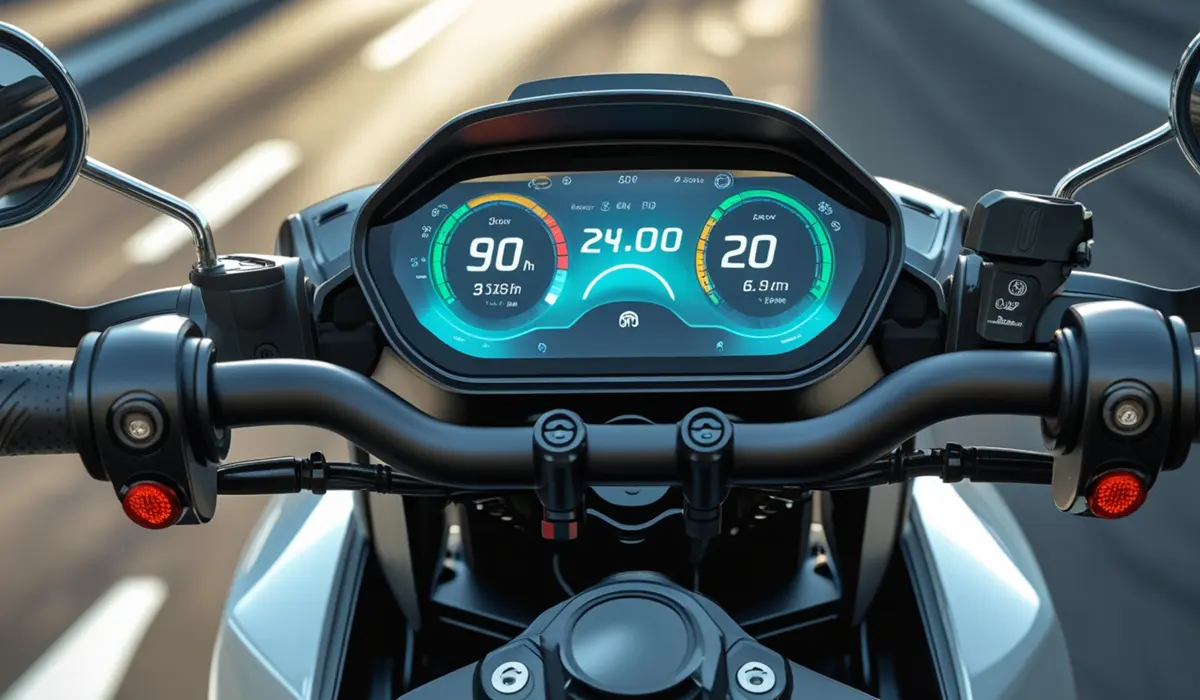

Solution: Epsum Labs designed and developed a custom 7-inch LCD instrument cluster featuring an intuitive display, GPS navigation, Bluetooth integration, and essential vehicle diagnostics.
Introduction:
Redefining the Electric Bike Dashboard
As the electric two-wheeler market grows increasingly competitive, rider experience becomes a key differentiator. A leading EV bike manufacturer recognized that a basic instrument display was no longer sufficient. They sought a partner to develop a modern, feature-rich instrument cluster that would not only provide essential information clearly but also integrate seamlessly with the rider's digital life, ultimately making their bikes more appealing and enjoyable. They chose Epsum Labs based on our expertise in embedded systems and user interface design.
The Challenges:
Moving Beyond Basic Metrics
The client identified several key requirements and challenges for the new instrument cluster:
Information Clarity
Riders needed instant access to critical data like speed, battery level (Range/SoC - State of Charge), distance traveled, and system warnings, presented in an easy-to-read format, even in varying light conditions (e.g., bright sunlight). The existing display was old and limited in size and visibility, with no navigation feature, making it difficult for consumers.
Seamless Connectivity
To meet modern rider expectations, the cluster needed reliable Bluetooth for smartphone pairing (calls, notifications, music streaming) and integrated GPS for on-screen navigation, reducing the need for separate devices. Ensuring stable and intuitive connectivity was crucial.
Integration and Reliability
The cluster had to integrate flawlessly with the bike's existing systems (Battery Management System - BMS, motor controller) to display accurate data and warnings (like low voltage alerts). It also needed to be robust and reliable enough for daily use in various environmental conditions.
Enhancing User Experience
The goal wasn't just to display data, but to create a positive, connected experience that made riding more convenient, informative, and enjoyable, setting the client's bikes apart from competitors.
The Solution:
Epsum Labs Custom-Engineered Smart Cluster
Epsum Labs's team undertook a comprehensive development process, from hardware selection to software design, resulting in a sophisticated instrument cluster:
High-Resolution Touch Display
We selected a vibrant 7-inch LCD display with a capacitive touch interface. This provided ample screen real estate for clear data visualization and intuitive touch controls, offering excellent resolution and brightness for optimal visibility.
Intuitive User Interface (UI)
Our designers crafted a clean, user-friendly interface prioritizing clarity. Key information (speed, battery %) was prominently displayed, while secondary functions and menus were easily accessible without distracting the rider. Along with key operational indicators like Site Stand status, left/right indicators, headlights, gear modes, servicing status, as well as alerts for maintenance needs or faults, all designed to improve operator efficiency.
Integrated Connectivity Suite
- GPS Navigation: Built-in GPS module provided turn-by-turn navigation directly on the cluster display.
- Bluetooth: Enabled seamless pairing with smartphones for hands-free audio playback control.
Vehicle System Integration
We ensured deep integration with the bike's core systems, providing real-time display of accurate battery percentage, range estimation, trip meters, odometer, and critical alerts like low voltage warnings to enhance rider safety.
Robust Hardware Design
The cluster was engineered for durability and reliability, considering factors like vibration resistance and weatherproofing suitable for a two-wheeler environment.
The Results:
Enhanced Rider Experience and Market Advantage
The new instrument cluster, developed by Epsum Labs, delivered significant value to the EV company and its customers:
Improved Rider Satisfaction
Feedback highlighted the clear display, ease of use, and convenience of integrated navigation and Bluetooth features, leading to a more positive ownership experience.
Increased Market Appeal
The state-of-the-art cluster became a key selling point for the client's electric bikes, differentiating them in a crowded market and appealing to tech-savvy consumers.
Strengthened Brand Image
The advanced technology demonstrated the client's commitment to innovation and rider experience, enhancing their brand perception as a forward-thinking EV manufacturer.
Driving Innovation in EV Technology
Through close collaboration and technical expertise, Epsum Labs successfully delivered an electric bike instrument cluster that blends essential riding information with modern connectivity features.
This project not only enhanced the functionality and appeal of the client's vehicles but also showcased Epsum Labs' capability in creating sophisticated, user-centric solutions for the evolving electric mobility landscape.
It stands as a strong example of how thoughtful technology integration can significantly elevate the end-user experience.
